Puck Stop Module of the FlexMove ® conveyor system

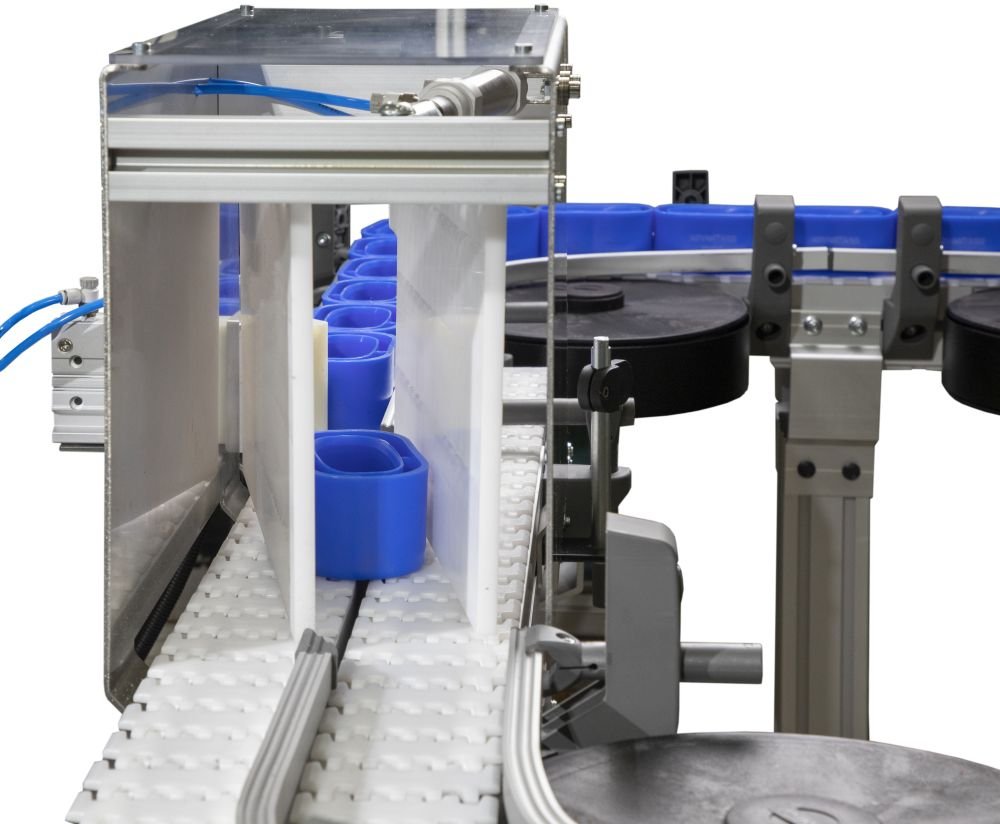

The pneumatically-operated Puck/Package Divert Module guides. (photo: Dorner)
The pneumatically-operated Puck Stop Module is available in two models:
- Vertical Blade Stop, which is used in pairs as an alternating escapement for pacing round or rounded-edge rectangular pucks;
- Horizontal Squeeze Stop, which is used in combination with the Vertical Blade Stop for pacing product without rounded edges.
The models are compatible with round or rectangular bottles, containers or pucks. UHMW face for non-marking contact surface and they includes flow controls with push-in air line connection.
The performance specifications of the Puck Stop Module include:
• Maximum single product weight: 2.3 kg (5 lbs.);
• Maximum product accumulation weight: 13.6 kg (30 lbs.);
• Maximum conveyor speed: 50 m/min (164 feet per minute);
• Produces gap of about one product length;
• Available on FlexMove Aluminum Conveyors: FS (65 mm), FM (85 mm), FC (105 mm), FL (150 mm), FU (180 mm), and FV (260 mm).
The Puck/Package Divert Module, compatible with round or rectangular bottles
The Puck Stop and Puck/Package Divert Modules are the latest additions to the FlexMove product line. (photo: Dorner)
The pneumatically-operated Puck/Package Divert Module guides product from one lane into two lanes. The divert arms is encapsulated inside a tunnel guard, where the module diverts product into their specified lane. Product can run back-to-back or paced for individual product divert.
Performance specifications of the Puck/Package Divert Module include:
• Product must be able to stand unsupported;
• Minimum single product weight: 0.2 kg (0.45 lbs.);
• Maximum single product weight: 5 kg (11 lbs.);
• Maximum product height: 150 mm (5.9 in.);
• Maximum product width: chain width (example: FM 85 mm).
Both modules are compatible with round or rectangular bottles, containers or pucks. Additional features, benefits and operating specifications of both the Puck Stop and Puck/Package Divert Modules include:
- UHMW plastic on the two puck stop models and diverter arms for non-marking contact surface;
- Flow controls with push-in air line connection;
- Requires photo sensors, pneumatic solenoid valves, wiring and programming;
- Production rate depends on product size;
- Available on FlexMove conveyors: FS (65 mm) – FM (85 mm) – FC (105 mm) – FL (150 mm) – FU (180 mm) – FV (260 mm).
FlexMove ® conveyor product line, the last additions

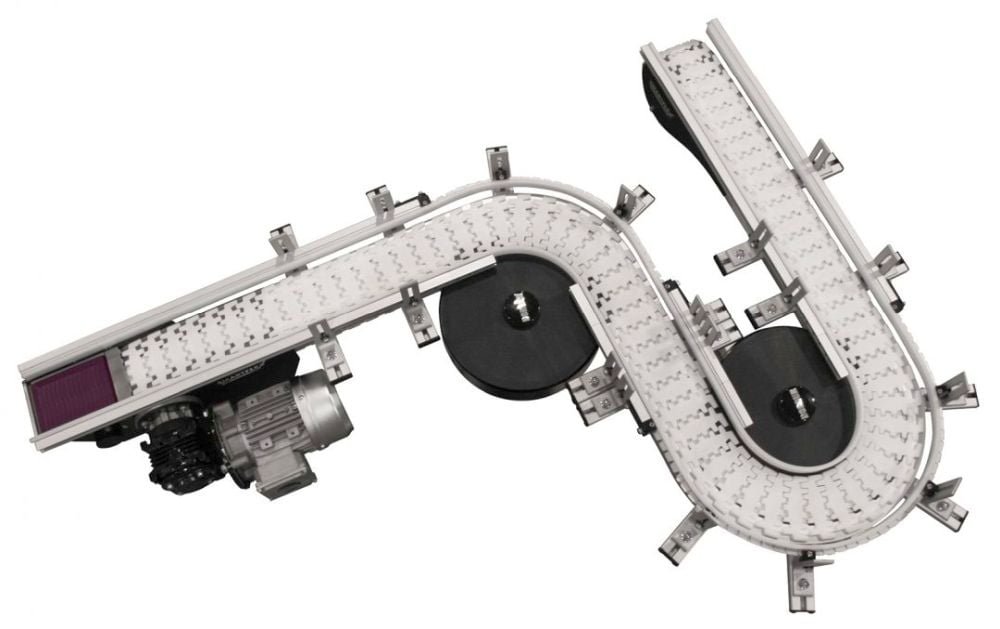

The FlexMove flexible chain conveyor brings the best engineering and performance standards in flexible conveying automation. (photo: Dorner)
The Puck Stop and Puck/Package Divert Modules are the latest additions to the FlexMove product line. Previous enhancements for added customer flexibility include a clamping module, wet/dry cleaning module, side-acting merge module, helical plain-bend option and a tight-turning radius option.
Benefits of the Puck/Package Divert Module:
- Pneumatic one-to-two lane diverter;
- Compatible with round or rectangular packages or pucks;
- Product can run back to back or paced for individual product divert;
- UHMW divert arms for non-marking divert surface;
- Includes flow controls with push-in air line connection.
FlexMove Conveyors

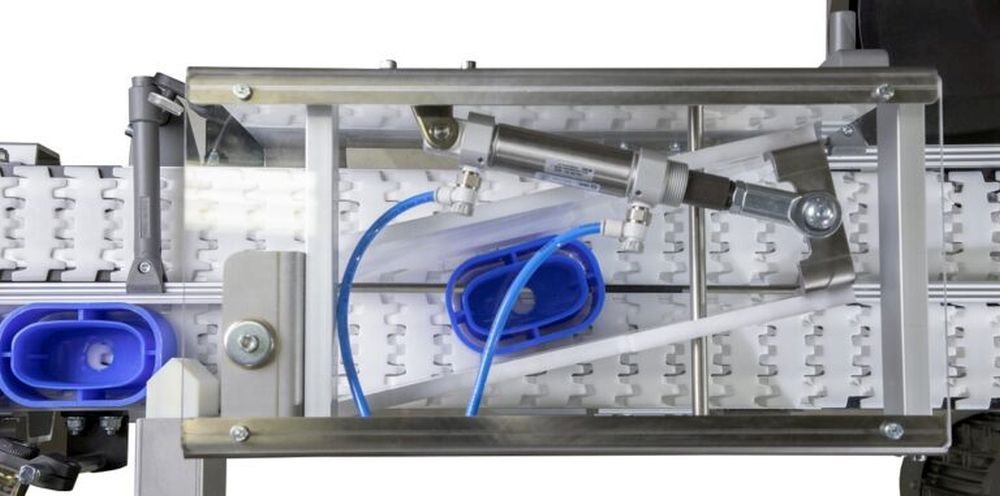

The pneumatically-operated Puck Stop Module is available in two models. (photo: Dorner)
The FlexMove flexible chain conveyor brings the best engineering and performance standards in flexible conveying automation. These aluminum-frame, flexible chain conveyors are ideal when floor space is limited as they are designed to make tight 360° turns in and around machinery and equipment. FlexMove conveyors are perfect for accumulation, packaging, part handling, product transfers, assembly and automation.
